Dedicated to Service at All Times
Sagar Lifts – Smart Vertical Mobility Solutions
Reliable | Customizable | Proven
Welcome to Sagar Lifts, your trusted partner in advanced vertical transportation solutions. With over 25 years of engineering expertise and more than 5000 successful lift installations across Mumbai, Pune, Nashik and Hyderabad. We specialise in delivering high-performance elevator systems for both construction and permanent use.

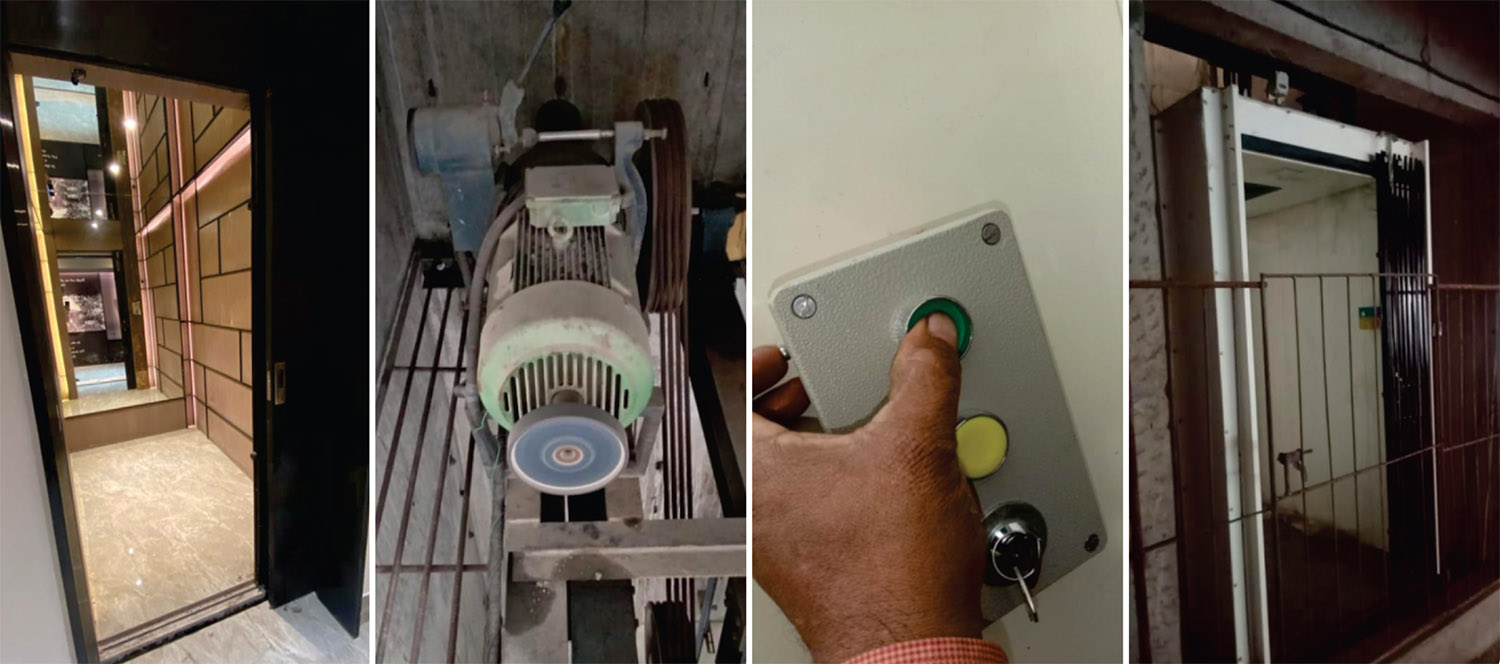

Men / Labour and Material Construction Hoist / Service Lift
Accelerate your construction projects with our Men & Material Construction Hoists — engineered for speed, safety, and site efficiency.
Key Benefits
Fast & Safe Vertical Transport for labour and materials
Smooth, Noiseless Travel with T-guide & traction technology
Modular Installation – extend lift height as the building grows
Reusable up to 5 Projects
Fits Any Shaft or Duct – No redesign needed
TECHNICAL SPECS
CAPACITY | 1000 kg. or 13 Persons. |
|---|---|
TRAVEL | Up to 250 mtrs. |
LIFTS SHAFT | Available Lift Shaft / Duct |
CAGE | M.S. Powder Coated |
SPEED | 0.6 – 1 mtrs / sec |
MACHINE | S-4 duty motor suitable for 120 start / stop per hour, coupled with lift duty gear box, fail safe brake, pulley and pedestal all mounted on M.S. channel base |
MACHINE ROOM | Inside Lift Shaft / Duct, using M.S. Channel Fabricated Structure |
GUIDES | Car & Counter Weight M.S. ‘T’ section for Smooth Travel |
CAR DOOR | Collapsible type cage Door with Safety Lock |
CONTROL | Advance control panel with up, down & stop arrangement |
SAFETY FEATURES | Floor and final limit switches for top and bottom • IS specification lift duty rope • 4 Ropes per Lift • Spring Buffers for Car and Counter Weight • Slack Rope Safety |
BENEFITS
BENEFITS
Ease of Travel
Fast Transport of Material & Labor, ensuring High Time Saving in Project execution
Better Supervision
Regular visits by Site supervisors, Architects, Consultants & Builders
Customer Care
Easily Transport Customers to Sample Flats on higher floors, for better customer engagement
Highly Reliable & Safest Vertical Transport Technology
Traction Technology used in Residential / Permanent Lifts
Standard & Efficient Technology
Low Maintenance
Smooth & Noiseless Travel
Guide Rails and Machine room at top floor ensure Smooth & comfortable travel
Modular Installation
Phased extension of lift for every 3 / 4 floors ensures full Building travel height use
Flexible Design
Flexible Cage size, hence Lift can be installed in Regular Lift shaft, or in Service Shaft, or any Suitable Empty Duct. No need to Worry about removing lift Early for Permanent Lift installation.
Reusable
Lift can be re-erected and up to 5 projects can be completed with same lift.

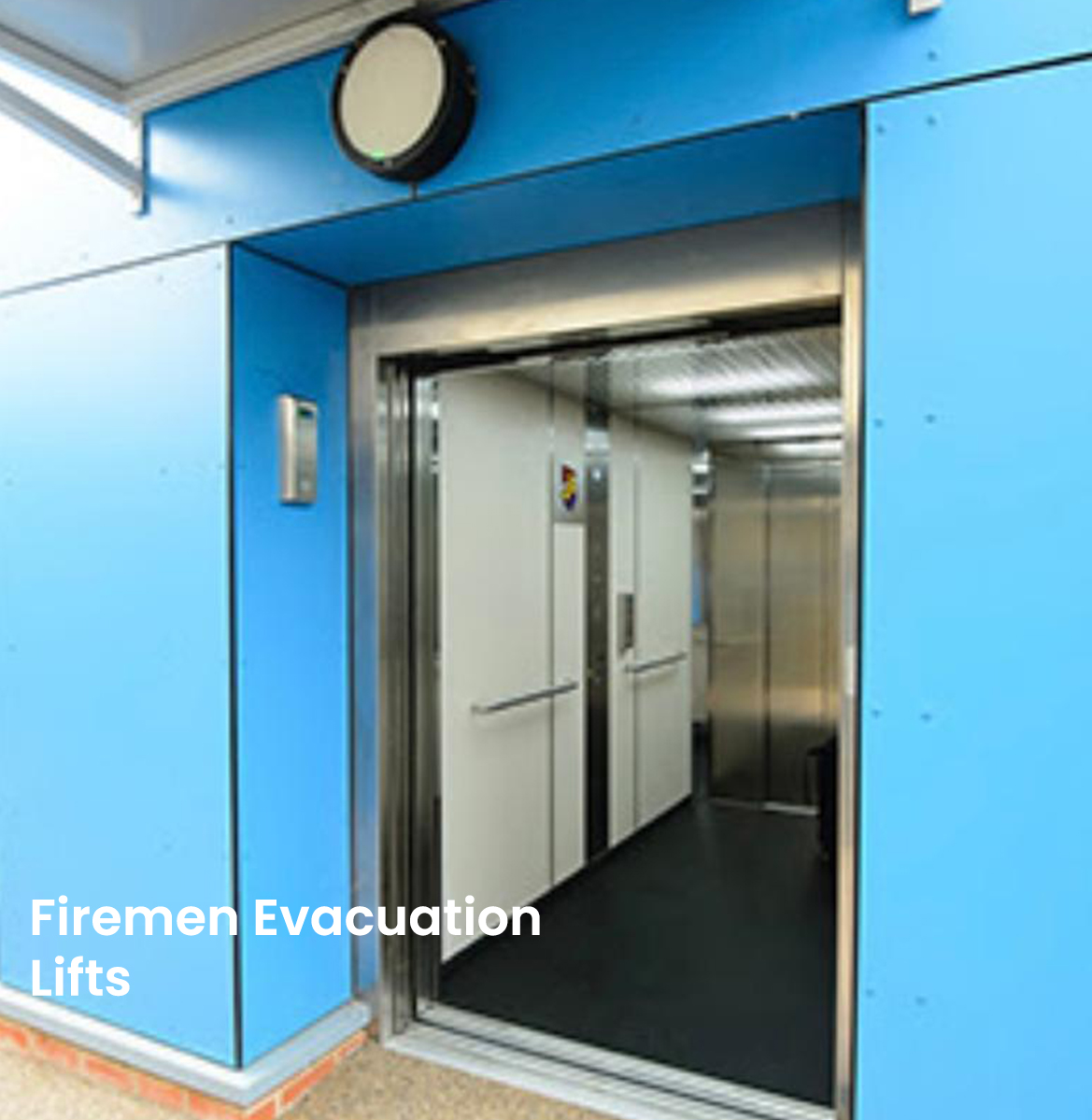

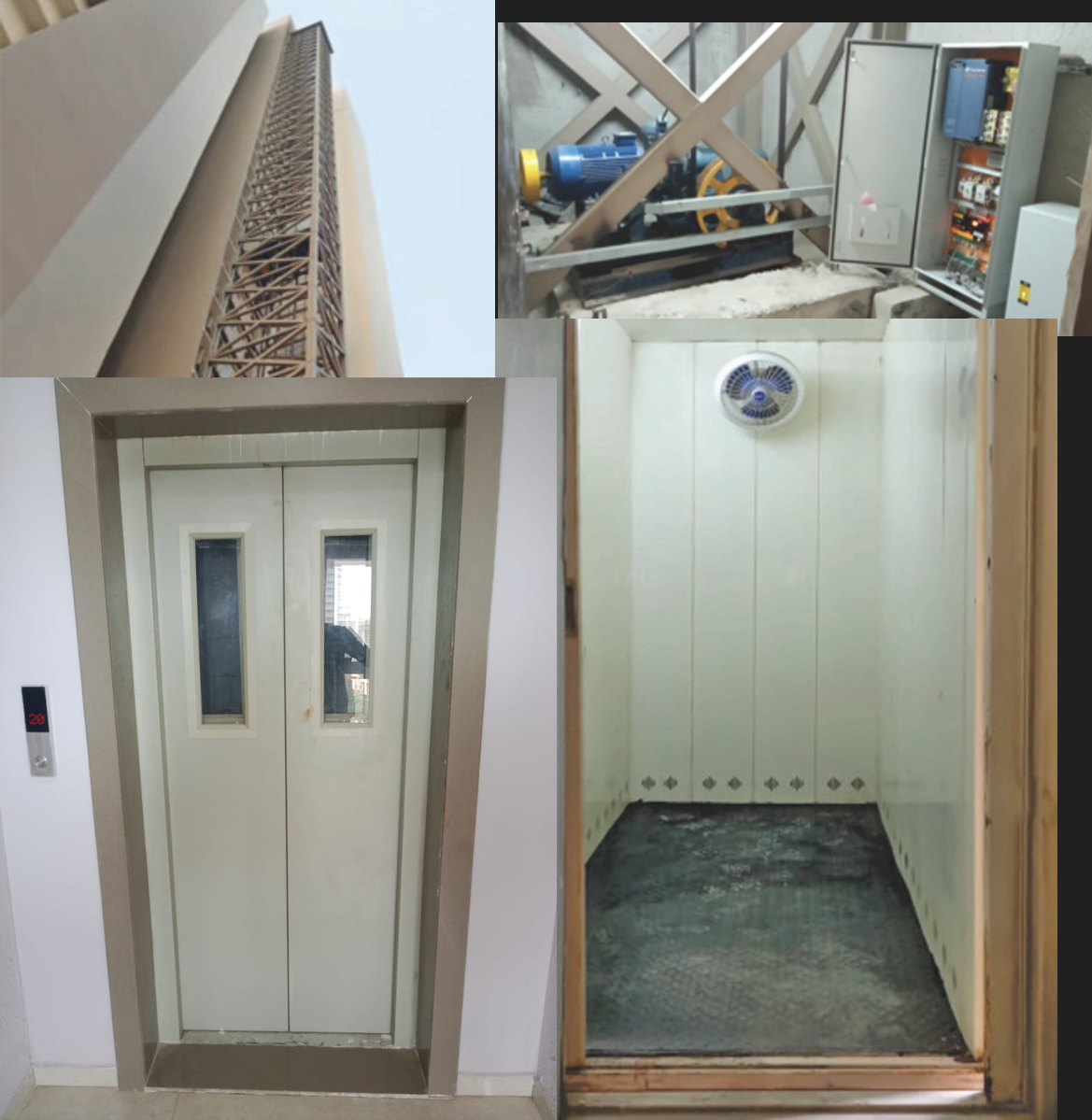

Fire Evacuation System
Our Fire Evacuation System is engineered to meet critical safety standards for emergency vertical transportation during fire events. Built with fire-resistant materials and equipped with advanced control and safety mechanisms, this system ensures secure evacuation and operational reliability even under extreme conditions. Below are the key technical specifications and safety features:
TECHNICAL SPECS
Specification | Details |
|---|---|
Capacity | 1000 Kg |
Lift Shaft | As per site availability |
Cabin | MS Powder Coated Finish (2 hours fire resistance) |
Cabin Door | MS Powder Coated Auto Door as per CFO NOC Norms |
Speed | 1.5 – 1.7 Mtrs/Sec |
Machine Unit | S-4 duty motor suitable for 120 start/stops per hour, coupled with lift duty gearbox, fail safe brake, pulley and pedestal all mounted on M.S. channel base |
Machine Room | To be provided on Ground Floor / Top Floor |
Guides | Machined ‘T’ section for smooth movement. Italian Imported |
Control | Advance Microprocessor type with V3F + ARD + Safety Control Features along with Intercom Facility |
Control Room | Control Panel to be placed in suitable location near Lift Shaft / Machine Room |
Landing Doors | MS Powder Coated Auto Door (2 Hrs Fire Resistance) |
Safety & Compliance | Safety Limit Switches. ISI Specification Lift Duty Rope. Safety Governor Device. Safety Buffers. |

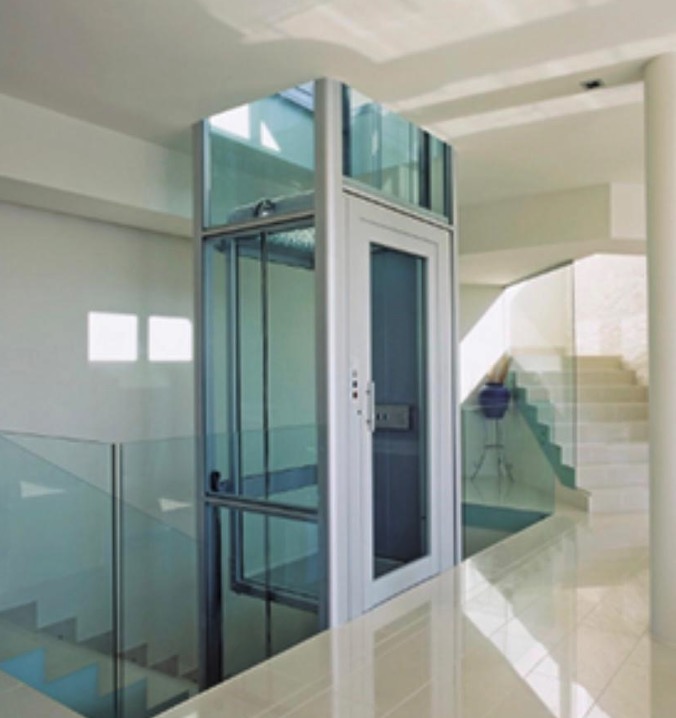

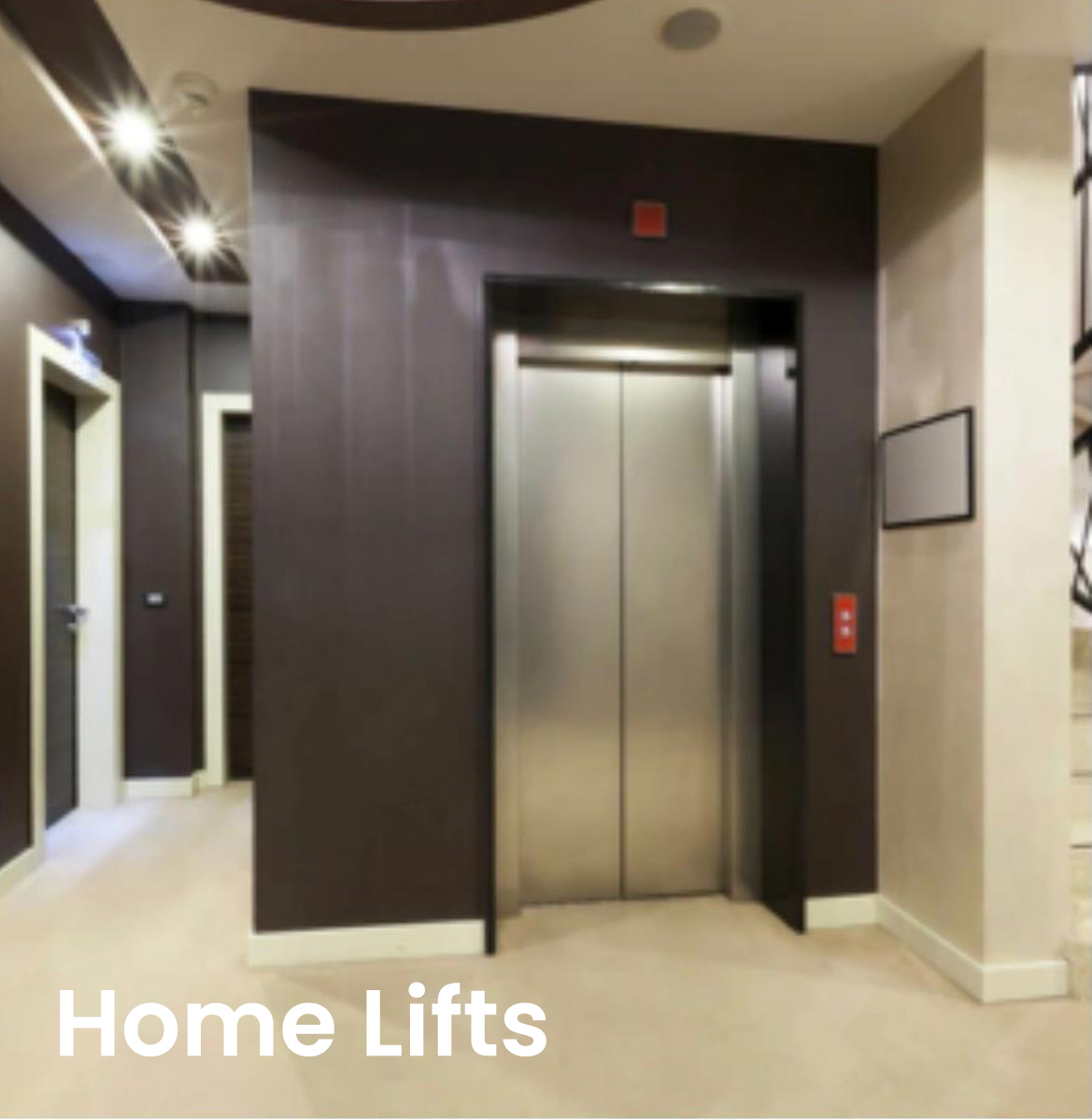

Permanent Lifts for Homes, Villas & Commercial Spaces
Elevate your lifestyle or operations with our customised lift systems built for residential and commercial spaces.

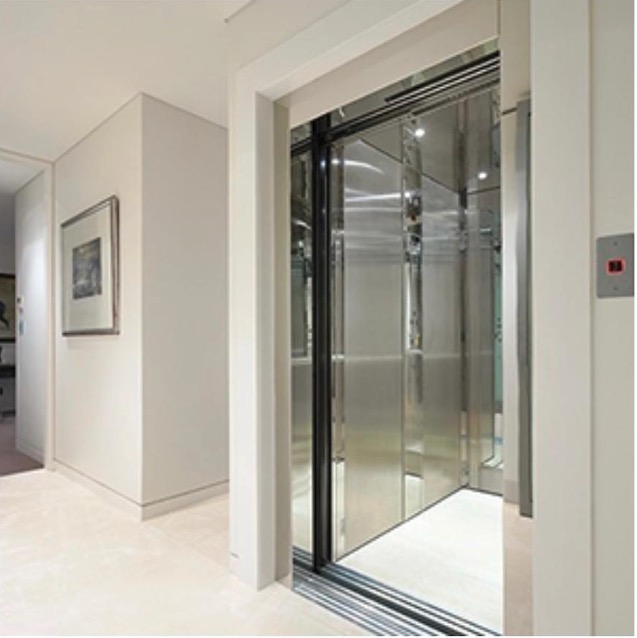

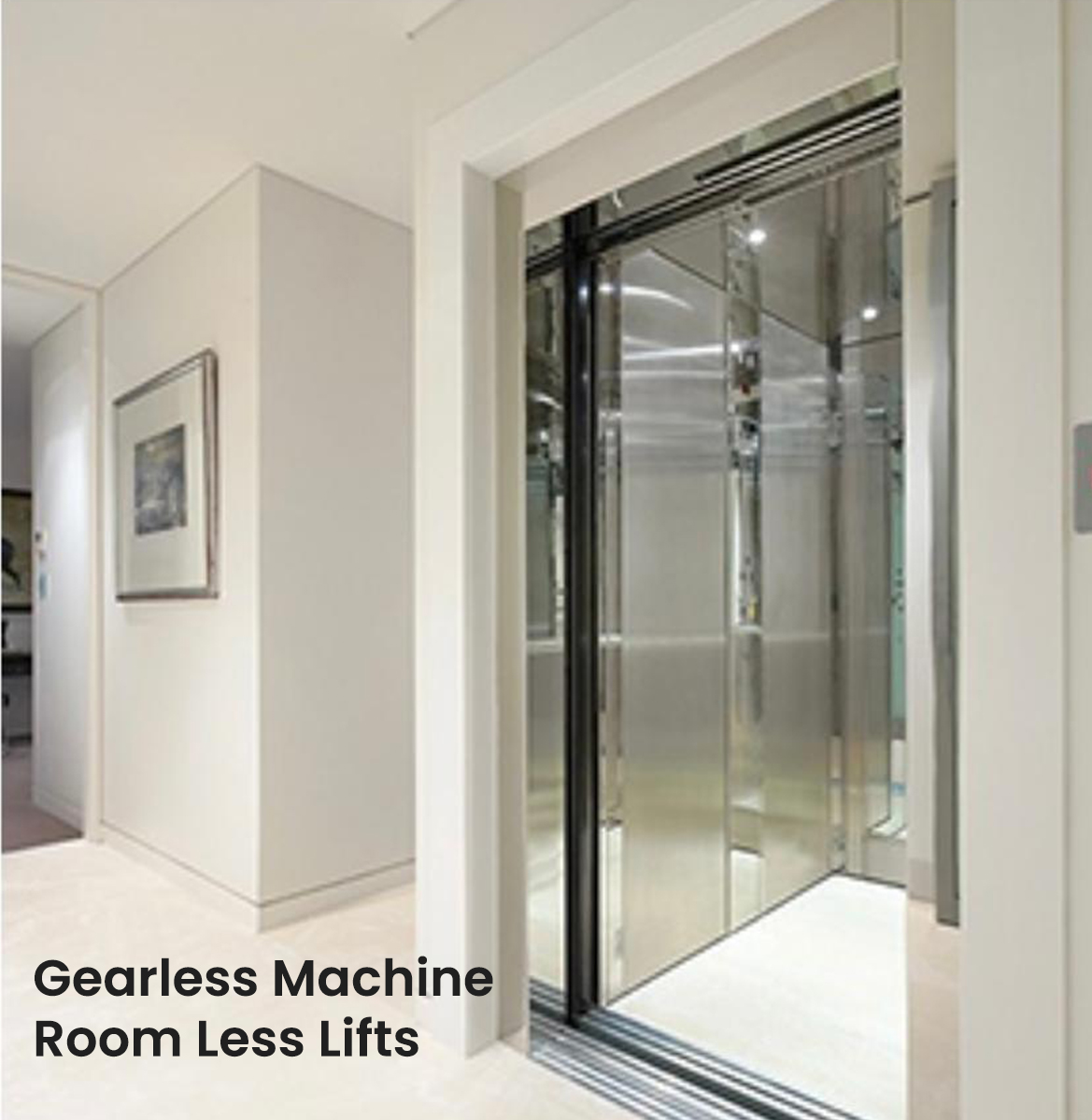

Machine Room-Less Elevator
Our Machine Room-Less (MRL) Elevator is engineered to deliver superior performance, safety, and energy efficiency without the need for a dedicated machine room. Designed for modern buildings, it combines state-of-the-art technology with space-saving design. Below are the core features that make this elevator system an ideal choice for residential, commercial, and institutional projects:
TECHNICAL SPECS
Max Duty Load: 884 KG
Speed: 0.75 – 1.5 M/Sec
Gearless Machine
Glass / Stainless Steel Doors
Emergency Bell
Emergency Car Lighting
Programmable Door Speed
Door Open Function via Hall Button
Repeated Door Close Feature
Door Nudging Feature
Door Load Detector
Infrared Door Sensor
No Running in Correction Run
Next Landing on Stop Function
Audio-Visual Overload Warning
Sleep Mode for energy efficiency
Fireman Operation Mode
Automatic Rescue Device (ARD)
Automatic Rail Lubrication System
Voice Announcement & Music Playback

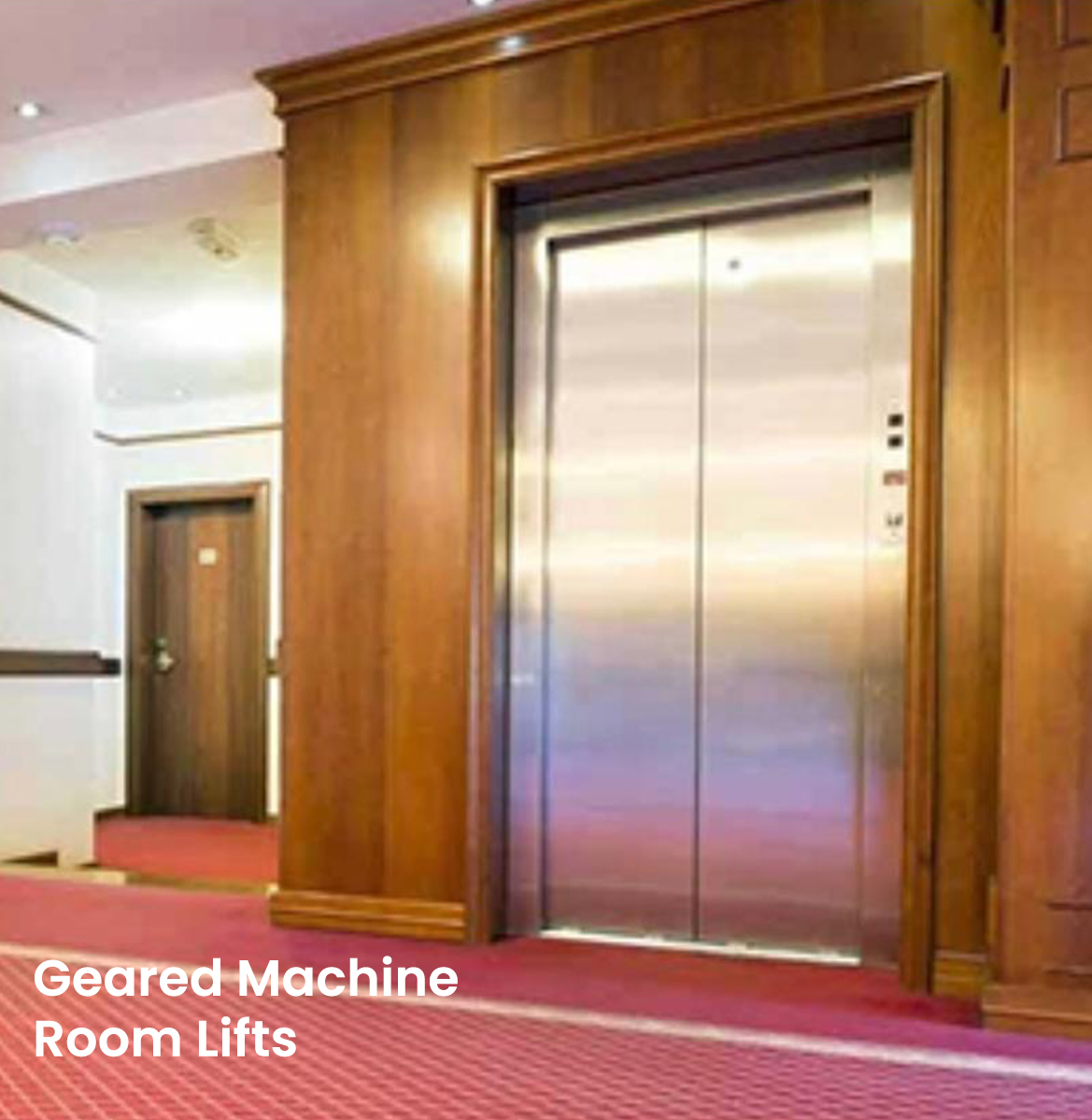

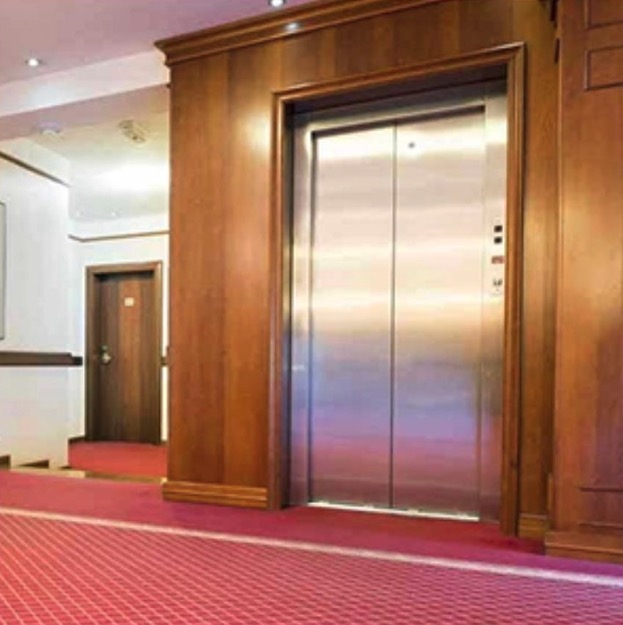

Machine Room Elevator
Our Machine Room Elevator is designed for buildings that demand robust load capacity and consistent performance. With advanced safety systems, smooth ride quality, and energy-saving modes, this elevator solution is ideal for commercial, industrial, and high-traffic environments. Explore the key features that ensure safety, comfort, and operational efficiency:
TECHNICAL SPECS
Max Duty Load: 2500 KG
Speed: 0.25 – 1 M/Sec
Geared Machine
Glass / Stainless Steel Doors
Emergency Bell
Emergency Car Lighting
Programmable Door Speed
Door Open with Hall Button
Repeated Door Close Function
Door Nudging Feature
Door Load Detector
Infrared Door Sensor
No Running in Correction Run
Next Landing on Stop Feature
Audio-Visual Overload Warning
Sleep Mode (Energy Saving)
Fireman Operation Mode
Automatic Rescue Device (ARD)
Automatic Rail Lubrication System
Voice Announcement & Music

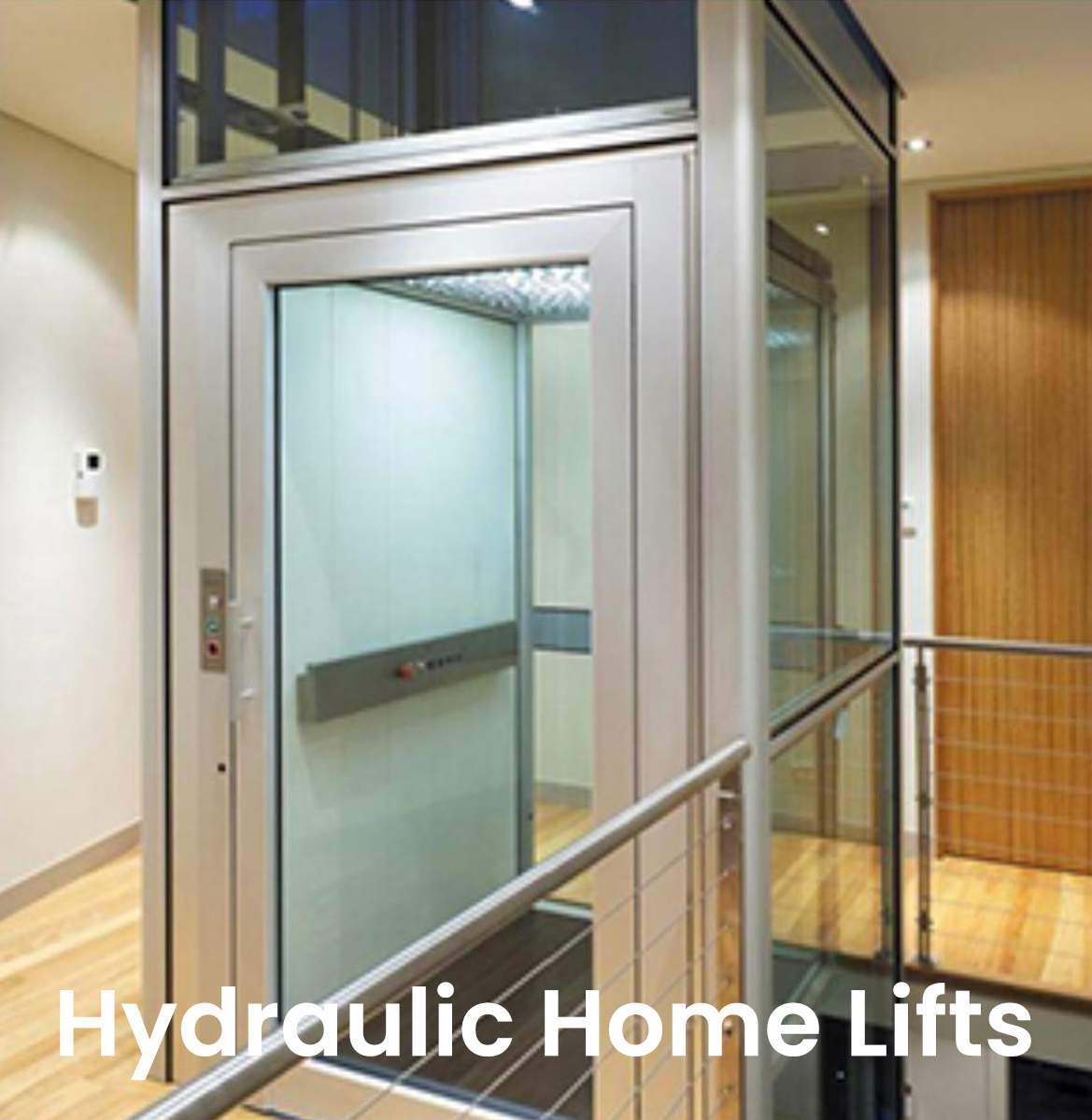

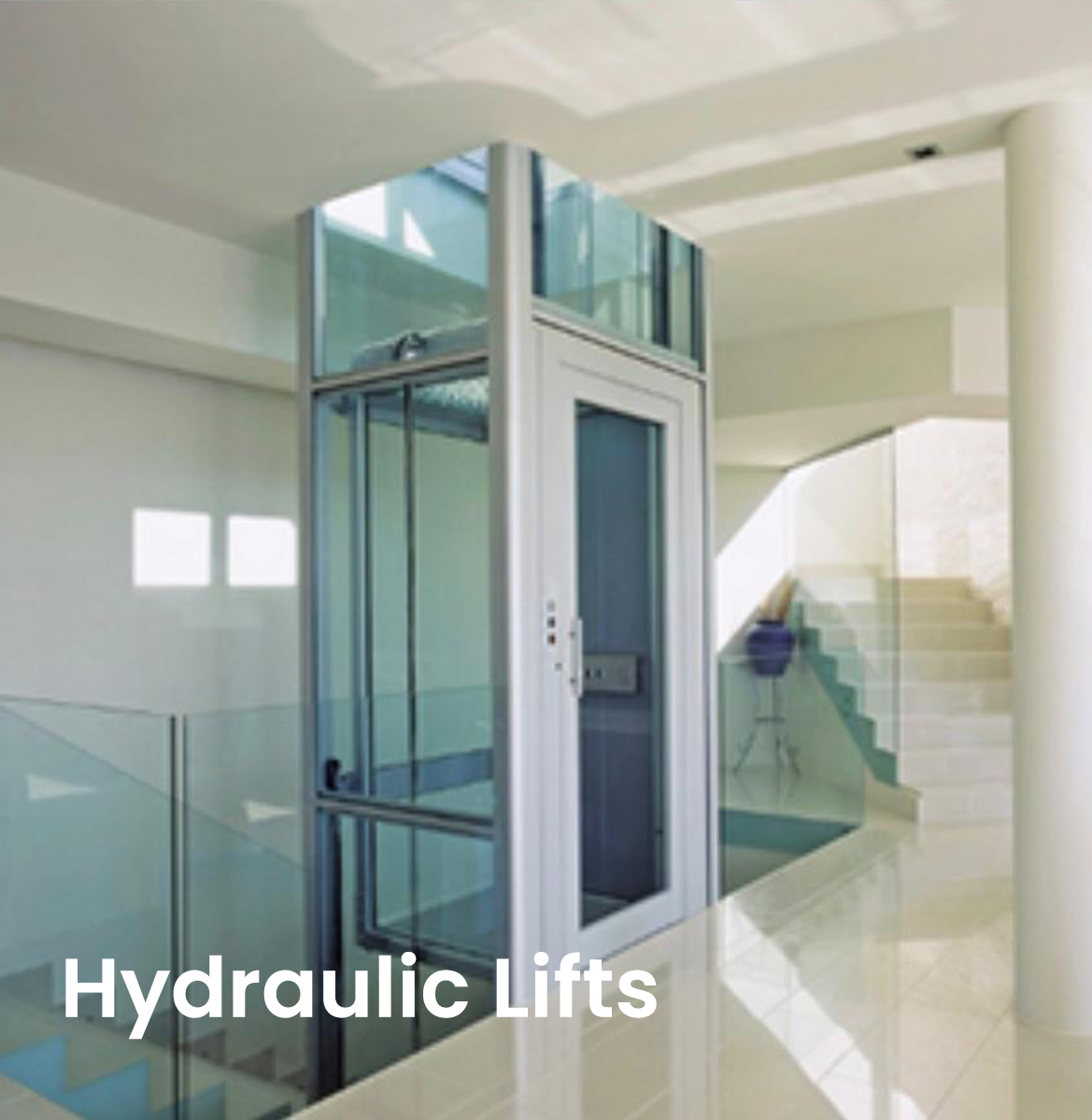

Hydraulic Elevator
Our Hydraulic Elevator System is built to handle high-capacity vertical transportation with smooth and silent operation. Engineered for buildings with lower travel heights, it offers exceptional load handling, safety features, and customizable performance options. Below is a detailed list of its core specifications and operational capabilities:
TECHNICAL SPECS
Max Duty Load: 4000 KG
Speed: 0.15 – 1 M/Sec
Hydraulic Power Pack
Glass / Stainless Steel Doors
Emergency Bell
Emergency Car Lighting
Programmable Door Speed
Door Open with Hall Button
Repeated Door Close Function
Guide Rail Brackets
Door Nudging Feature
Door Load Detector
Infrared Door Sensor
No Running in Correction Run
Next Landing on Stop Feature
Audio-Visual Overload Warning
Sleep Mode (Energy Saving)
Fireman Operation Mode
Automatic Rescue Device (ARD)
Automatic Rail Lubrication System
Voice Announcement & Music

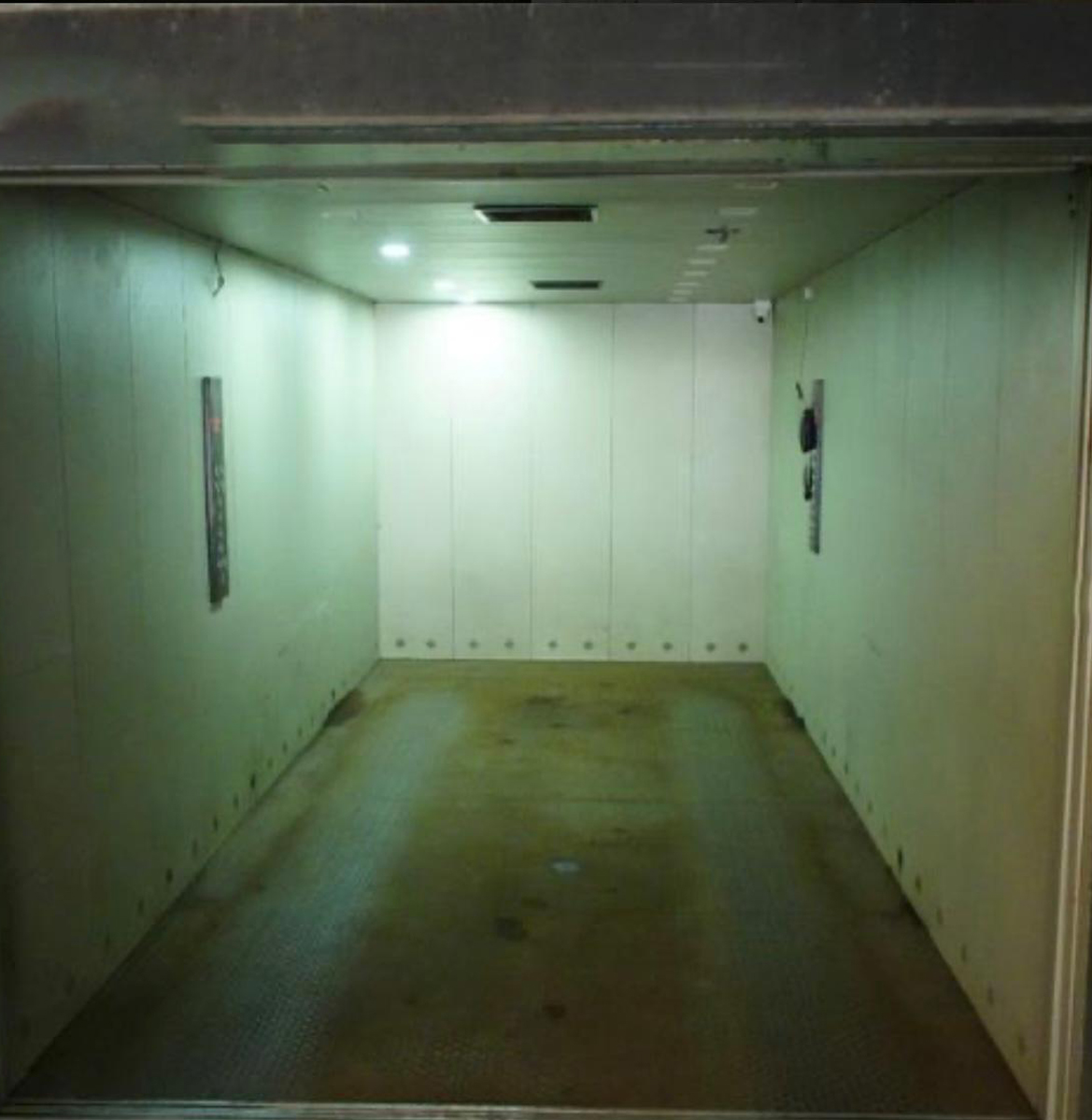

Car Lift / Heavy-Duty Freight & Hospital Lift
Our Car Lift, Heavy-Duty Freight, and Hospital Elevator solutions are purpose-built to handle large volumes, oversized loads, and sensitive environments with precision and reliability. These lifts are engineered with robust materials, versatile door configurations, and advanced safety features to meet the unique demands of automotive, industrial, and healthcare facilities. Explore the key features tailored for high-capacity vertical transport:
TECHNICAL SPECS

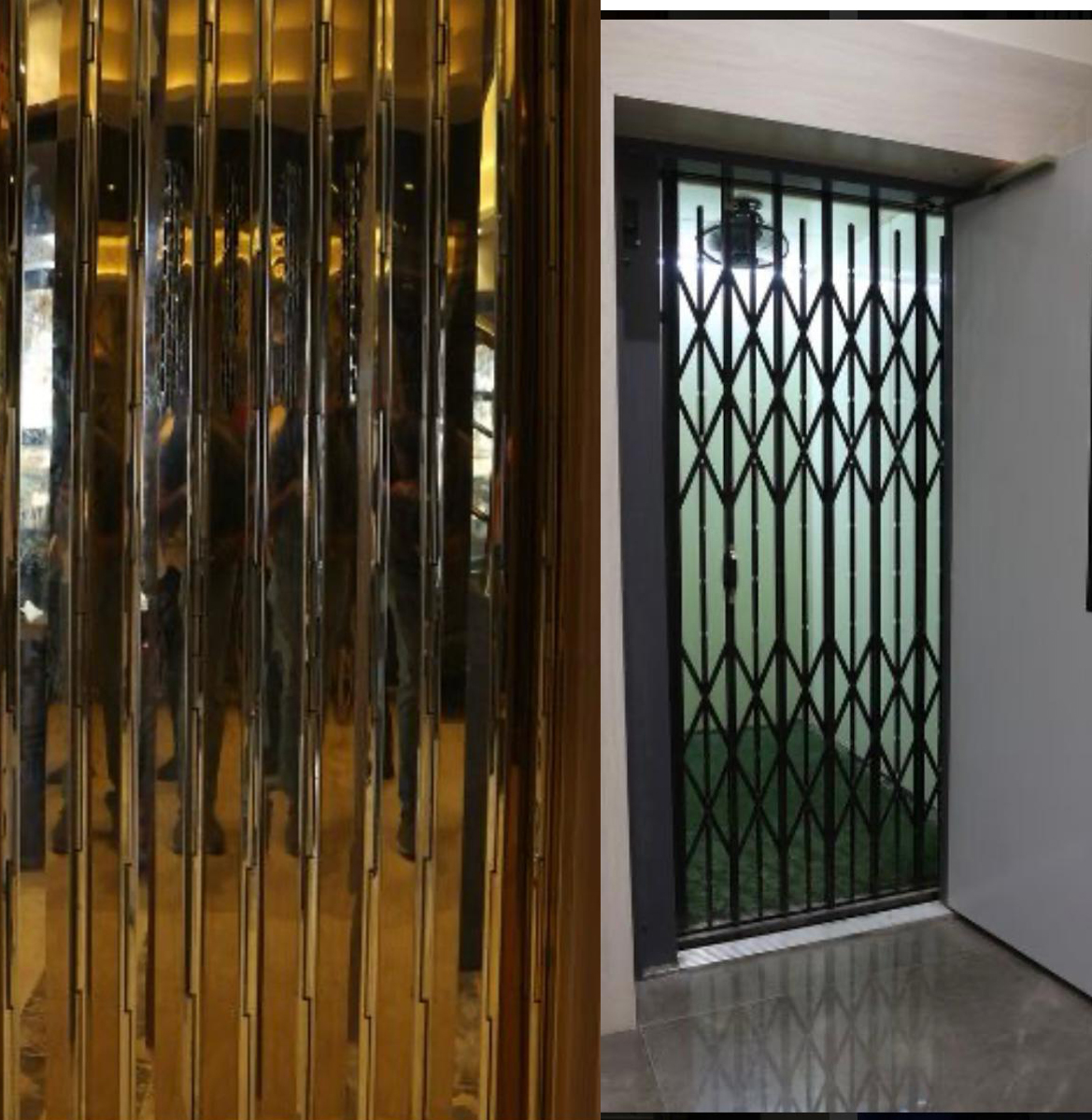

Manual Accordion Doors
Vertical Bi-Parting Doors

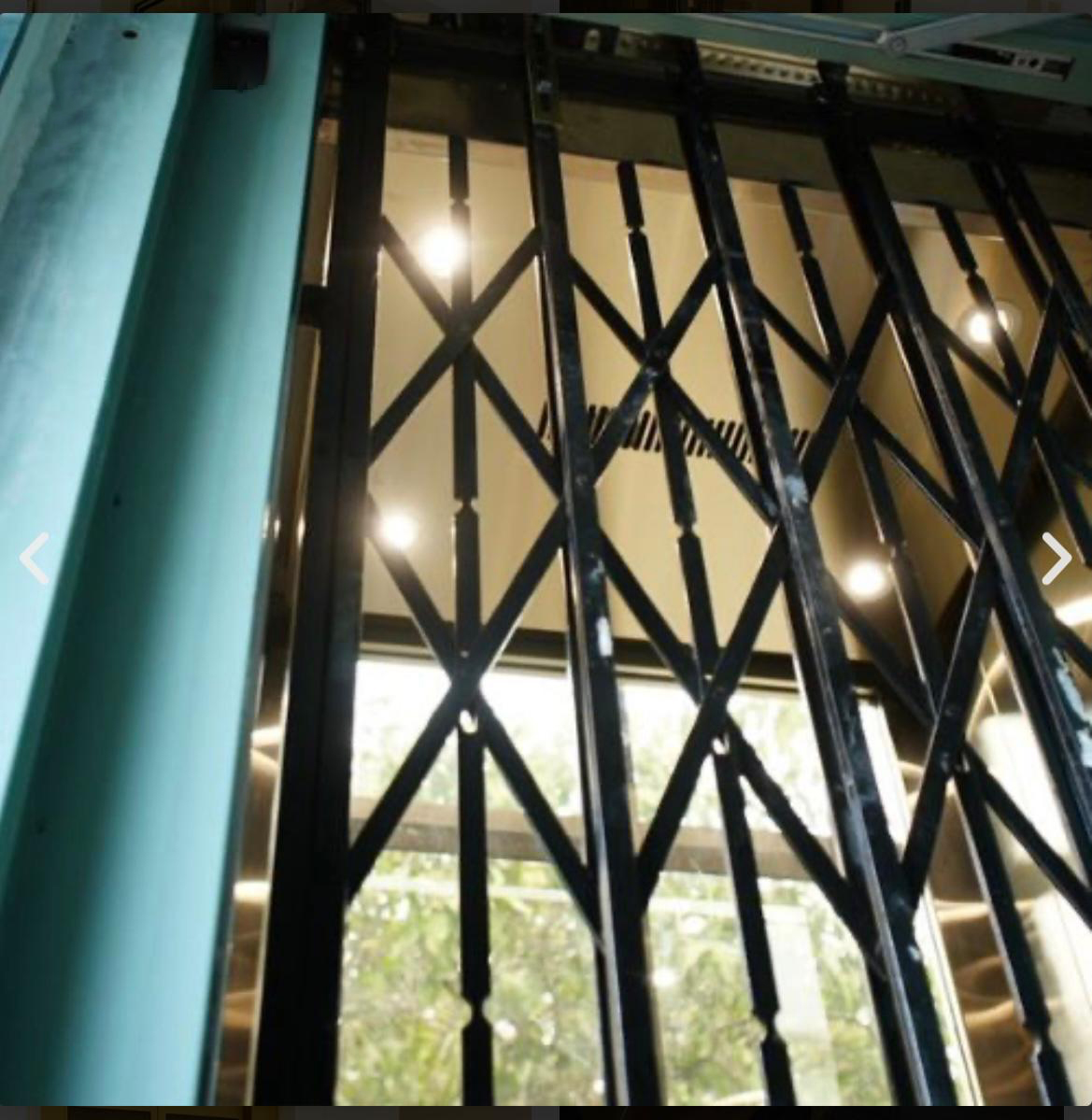

Collapsible Doors
4 / 6 Automatic Doors
Reverse Opening Doors
MS / SS Car Cabin
Chequered Plate Flooring
Impact Guard Rails
Sleep Mode (Energy Saving)
Fireman Operation Mode
Automatic Rescue Device (ARD)
Automatic Rail Lubrication System
Emergency Bell
Emergency Car Lighting
Optional Feature Integration
Voice Announcement & Music
Two-Way Intercom System
About us
Rising with Every Floor – Our Story
Over two decades ago, Sagar Lifts was founded with a vision to revolutionise vertical transportation for India’s growing real estate and construction sectors. What began as a focused effort to support construction lift requirements has evolved into a trusted name in customised elevator solutions.
Backed by engineering excellence and a commitment to safety and performance, we have completed over 5,000 lift erections across Mumbai, Pune, Nashik, and Hyderabad—serving sites ranging from 10 floors to high-rises exceeding 80 floors.
Our Founders
Mr. V. T. Rajani – A veteran engineer with 40+ years in the elevator industry. Former Director of Kare Elevators & Engineering Co. and Managing Director of Thyssenkrupp Elevator India.
Mr. Mukesh Kanodra – Founder & Partner with 45 years of experience, widely recognised as a pioneer in the Man & Material Construction Lift segment in India.
Today at Sagar Lifts
With a strong core team of engineers, supervisors, maintenance experts, and contractors, Sagar Lifts offers a full range of customised elevator solutions—from construction hoists to high-end residential, commercial, and industrial lifts.
Why Choose Us
We keep it simple, fast, and done right.
Over 20 Years of Industry Expertise
Proven experience in delivering vertical transport solutions across sectors.
End-to-End Lift Solutions
From construction hoists to luxury home elevators—customized to your needs.
Quality You Can Trust
IS-compliant components, modern safety features, and smooth performance.
Modular & Reusable Installations
Designed for flexibility and multiple project use.
Strong Regional Presence
Quick service support across Mumbai, Pune, and Nashik.
Engineer-Led Team
Skilled professionals with a customer-first approach.
OUR CLIENT’s
-
Contact us
We’re here when your building needs to rise
Fast support, expert solutions, and real engineers who understand vertical mobility—from construction hoists to custom elevators.
Fill out your information and a we will reach out to you.
